응축수 유수분리기
응축수 유수분리기(약품방식)

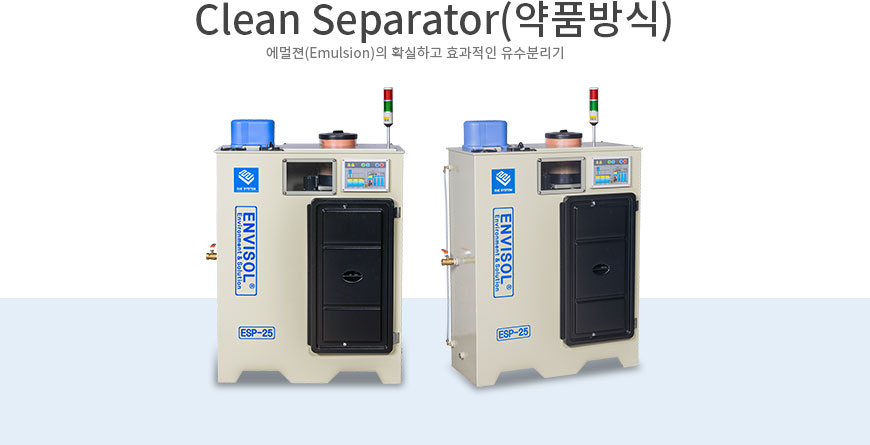

제품이미지

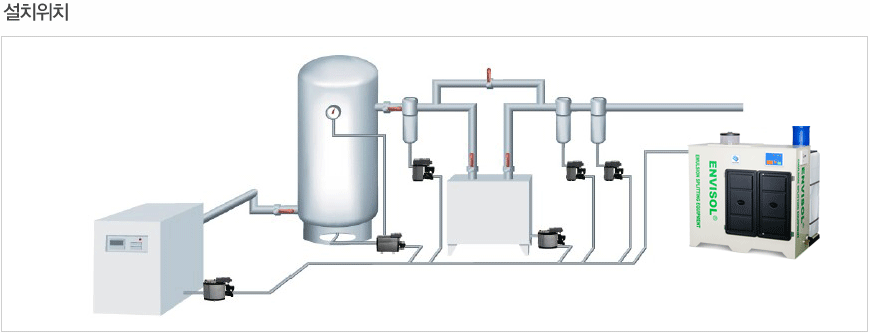

제품특징

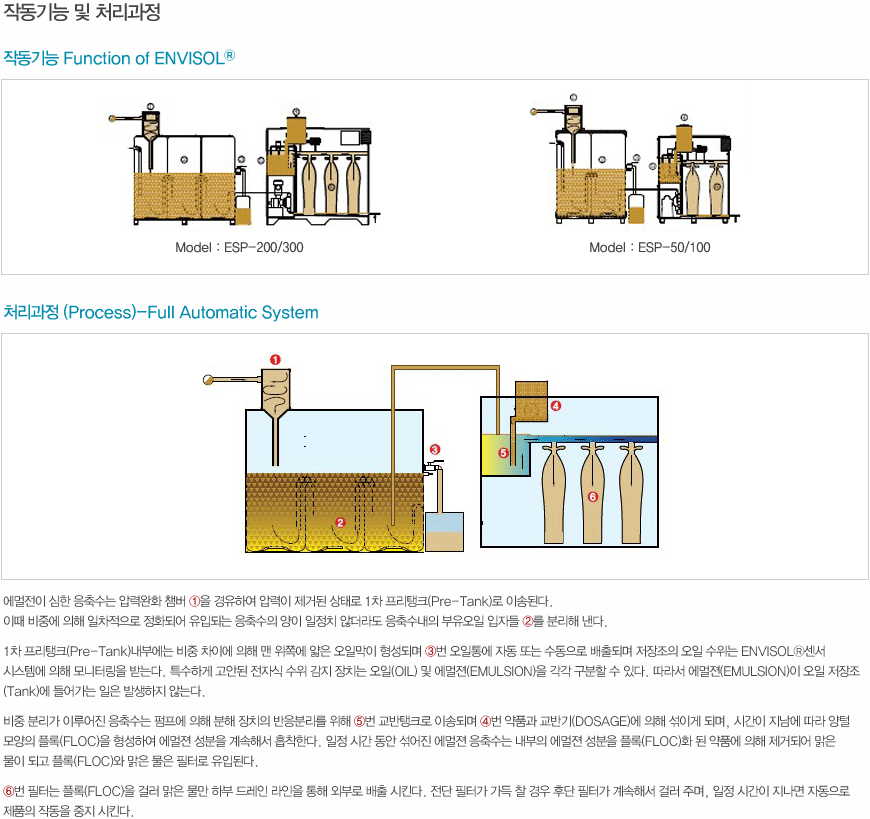

제품특징

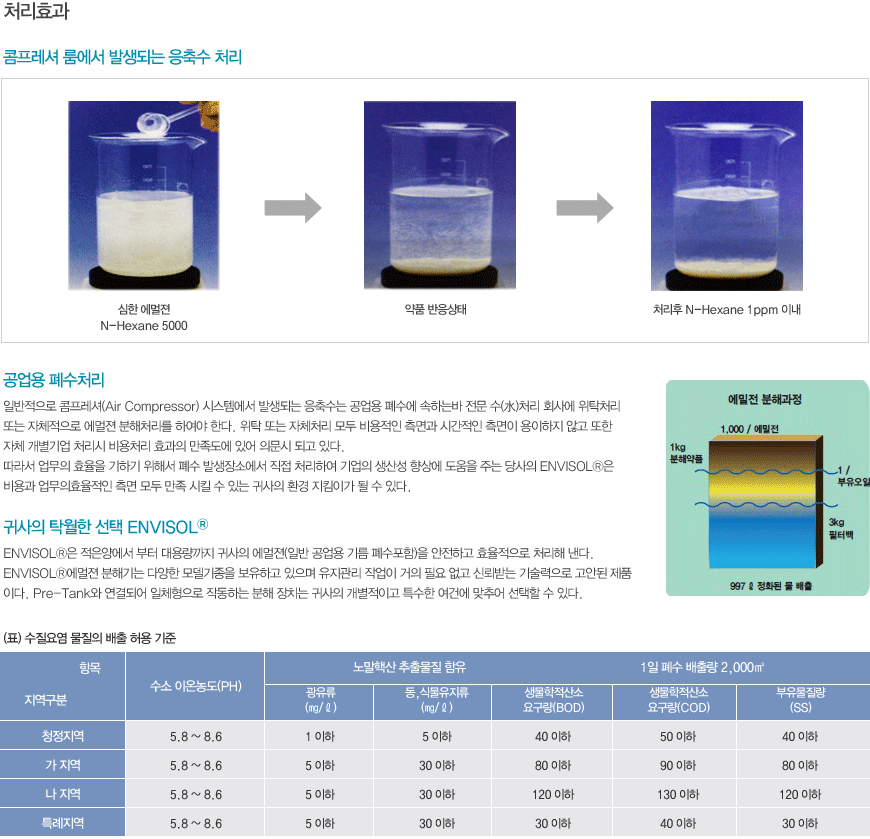

제품특징

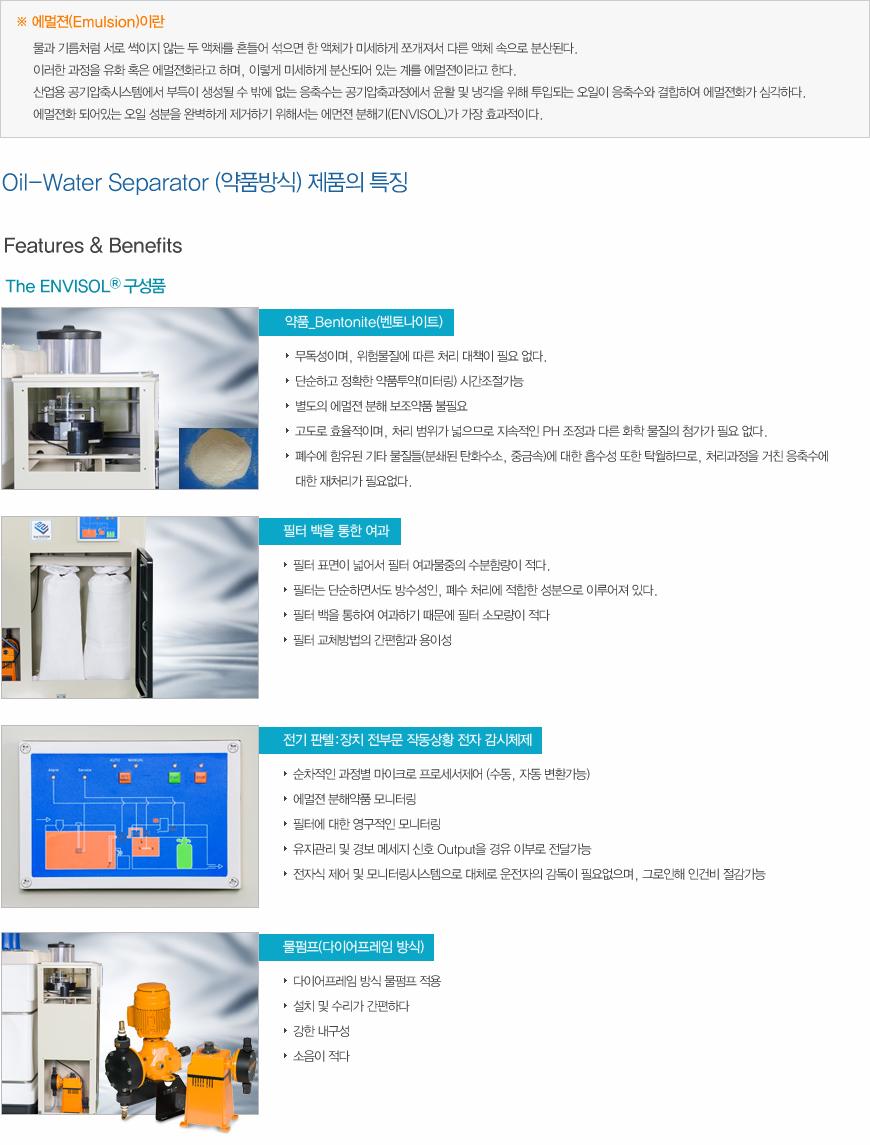

제품특징

ENVISOL ESP-25 ESP-50 ESP-100 ESP-200 ESP-300
Order Reference EXP 025 000 EXP 050 000 EXP 100 000 EXP 200 000 EXP 300 000
Hourly Capacity 30L/hr 60L/hr 120L/hr 240L/hr 360L/hr
Compressor Capacity 25㎡/min 50㎡/min 100㎡/min 200㎡/min 300㎡/min
Pre-Separation Tank Volume 170L 600L 600L 900L 900L
Reaction Tank Volume 31L 37L 37L 66L 66L
Splitting Agent Container Volme 9L 12L 12L 20L 20L
Filter Bag Volume 60L 2 x 60L 2 x 60L 3 x 60L 3 x 60L
Oil Collector 25L 25L 25L 25L 25L
Condensate Inlet 3/4" 3/4" 3/4" 1"(DN32㎜) 1"(DN32㎜)
Water Outlet 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜)
Over Flow 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜)
Oil Outlet 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜) 1"(DN32㎜)
Sample Valve 1/4" 1/4" 1/4" 1/4" 1/4"
Power 220V/50.60Hz/IP/100W 220V/50.60Hz/1P/500W 220V/50.60Hz/1P/500W 220V/50.60Hz/3P/1000W 220V/50.60Hz/3P/1000W
Tempurature(Min/Max) +1 ~ +50℃ +1 ~ +50℃ +1 ~ +50℃ +1 ~ +50℃ +1 ~ +50℃
Pressure Max 16Bar 16Bar 16Bar 16Bar 16Bar

Emulsion Splitter PP or ABS
Reaction Tank PP
Splitting Agent Container PMMA or ABS
Filter Bag PP
Pressure Relidf valve PE
Oil collector PE

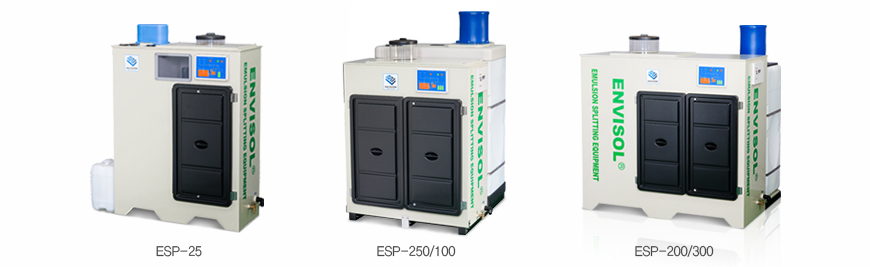

제품사진
