Compressor Type |
Max.Working Pressure | Capacity | Motor Power | Noise | Dimension(LxWxH) | Weight | Air Outlet | |||
---|---|---|---|---|---|---|---|---|---|---|
bar | psig | ㎥/min | cfm | kw | HP | dB(A) | mm | kg | A(B) | |
PS55 | 7 | 100 | 7.5 | 254 | 37 | 50 | 65 | 1640x1000x1750 | 1165 | 40(1½) |
8 | 115 | 7.2 | 244 | |||||||

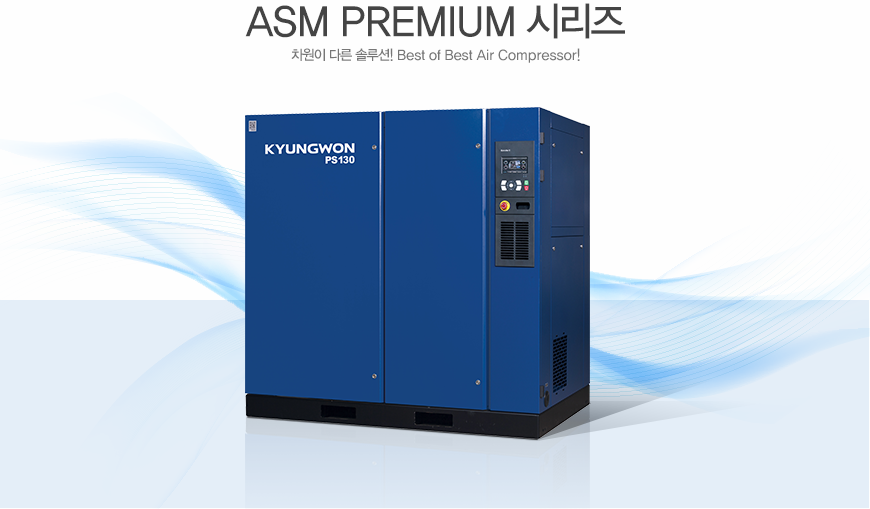

PS130 | 7 | 100 | 16.0 | 544 | 75 | 100 | 75 | 2130x1300x1960 | 2000 | 50(2) |
8 | 115 | 14.8 | 505 | |||||||
PS240 | 7 | 100 | 29.6 | 1038 | 160 | 215 | 80 | 2774x1500x2180 | 3815 | 80(3) |
8 | 115 | 29.3 | 1035 |
Compressor Type |
Max.Working Pressure | Capacity | Motor Power | Noise | Dimension(LxWxH) | Weight | Air Outlet | |||
---|---|---|---|---|---|---|---|---|---|---|
bar | psig | ㎥/min | cfm | kw | HP | dB(A) | mm | kg | A(B) | |
PS55V | 7 | 100 | 2.4~7.2 | 85~254 | 37 | 50 | 65 | 1640x1000x1750 | 1230 | 40(1½) |
8 | 115 | 2.3~6.9 | 81~244 | |||||||
PS130V | 7 | 100 | 5.1~15.4 | 180~544 | 75 | 100 | 75 | 2130x1300x1960 | 2110 | 50(2) |
8 | 115 | 4.8~14.3 | 168~505 | |||||||
PS240V | 7 | 100 | 9.8~29.4 | 346~1038 | 160 | 215 | 80 | 3175x1500x2180 | 4005 | 80(3) |
8 | 115 | 9.7~29.3 | 343~1035 |
