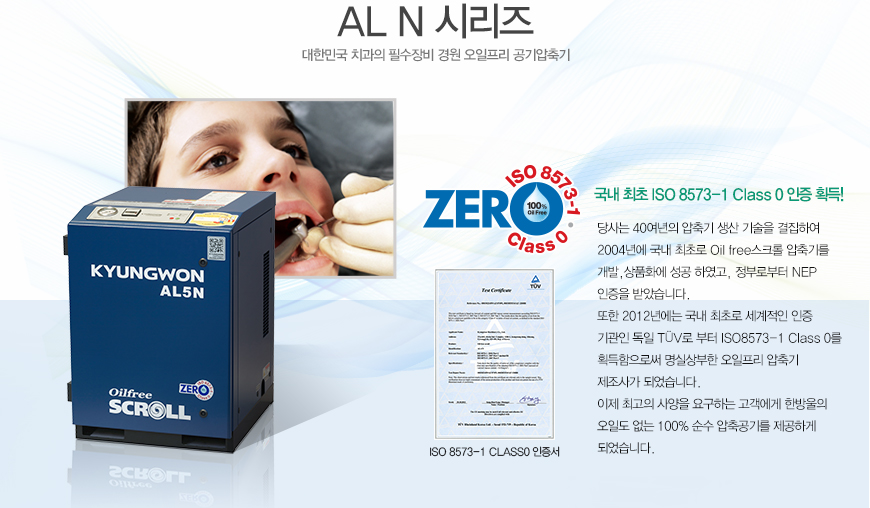

- AL N SERIES
| Model | Max.Working Pressure | Capacity | Motor Power | Noise | Dimension(LxWxH) | Air Outlet | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| barg | psig | LPM | CFM | kW | HP | dB(A) | mm | A(B) | kg | |
| AL2N(1ph) | 8.0 | 113.7 | 141 | 5 | 1.5 | 2 | 50 | 550x550x775 | 15(1/2) | 110 |
| AL3N | 8.0 9.9 |
113.7 140.8 |
271 219 |
9.6 7.7 |
2.2 | 3 | 50 | 550x620x775 (550x620x845) |
15(1/2) | 130 |
| AL5N | 8.0 9.9 |
113.7 140.8 |
416 352 |
14.7 12.4 |
3.7 | 5 | 50 | 550x620x775 (550x620x845) |
15(1/2) | 140 |
| Compressor Type |
Max.Working Pressure | Capacity | Motor Power | Tank Volume | Filteration | Dimension(LxWxH) | Air Outlet | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| barg | psig | LPM | CFM | kW | HP | ℓ | ㎛ | mm | A(B) | kg | |
| AL2D(1ph) | 8.0 | 113.7 | 141 | 5 | 1.5 | 2 | 38 | 5 | 530x465x960 | 15(1/2) | 80 |
| AL2D | 8.0 | 113.7 | 141 | 5 | 1.5 | 2 | 38 | 5 | 650x660x960 | 15(1/2) | 80 |
| AL3D | 8.0 | 113.7 | 271 | 9.6 | 2.2 | 3 | 38 | 5 | 650x660x960 | 15(1/2) | 90 |
| AL5D | 8.0 | 113.7 | 416 | 14.7 | 3.7 | 5 | 38 | 5 | 650x660x960 | 15(1/2) | 100 |
- 규격 및 사양은 제품의 개량 등으로 사전예고 없이 변경될 수 있습니다.
